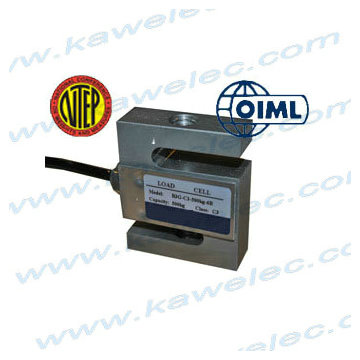

| Features of KB3G S Type Load Cell : |
| 1,Stainless steel IP67 “S” type load cell |
| 2,Tension and compression applications |
| 3,Suitable for hanging, hopper and other weighing devices |
| 4, Also available in imperial capacities and dimensions |
| |
|
|
|
|
|
| Capacity of KB3G S Type Load Cell: |
| 50kg C3 S type Load Cell KB3G |
| 100kg C3 S typeLoad Cell KB3G |
| 250kg C3 S type Load Cell KB3G |
| 500kg C3 S type Load Cell KB3G |
| 1.0t C3 S type Load Cell KB3G |
| 2.5t C3 S typeLoad Cell KB3G |
| 5.0t C3 S type Load Cell KB3G |
| 7.5t C3 S type Load Cell KB3G |
| 10t C3 S type Load Cell KB3G |
| |
|
|
|
|
|
| Specification of KB3G S Type Load Cell: |
| Accuracy Class |
|
OIML R60 C3 |
| Output sensitivity(=FS) |
mV/V |
3.0 ± 0.008 |
| Maximum Capacity(Emax) |
t |
0.05/0.1 |
0.25/0.5/1/2.5 |
5/7.5/10 |
| Maximum number of load cell intervals(Nlc) |
|
3000 |
| Ratio of minimum LC verification interval Y=Emax/Vmin |
|
7000 |
10000 |
12000 |
| Combined Error |
%FS |
≤ ± 0.0200 |
| Safe overload |
of Emax |
1.5 |
| Ultimate overload |
of Emax |
3 |
| Zero Balance |
of FS |
＜±1.0% |
| Excitation, recommended voltage |
V |
5 ~ 12 |
| Excitation maximum |
V |
18 |
| Terminal resistance, input |
Ω |
430±50 |
| Terminal resistance, output |
Ω |
351 ± 2 |
| Maximum platform size |
mm |
400*400 |
| Insulation impedance |
MΩ |
≥5000(at 50VDC) |
| Temperature range, compensated |
℃ |
-10 ~ +40 |
| Temperature range, operation |
℃ |
-35 ~ +65 |
| Element material |
|
Stainless steel |
| Ingress Protection (according to EN60529) |
|
IP67 |
| Recommended torque on fixation bolts |
Nm |
M12: 100 |
M12: 100 |
M16: 160 |
| |
|
|
|
|
|

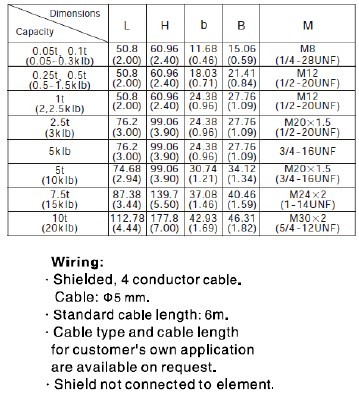

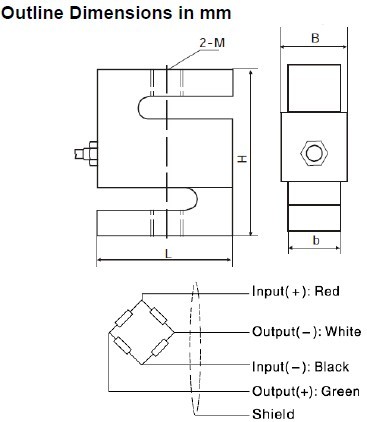

| Wiring of KB3G S Type Load Cell: |
| Shielded, 4 conductor cable: Ø5mm. |
| Standard cable length is 6m |
| Shield is not connected to element |
| Different cable type and length are available on customer request. |
| |
|
|
|
|
|
| Application of KB3G S Type Load Cell: |
| Suitable for hanging, hopper and other weighing devices |
