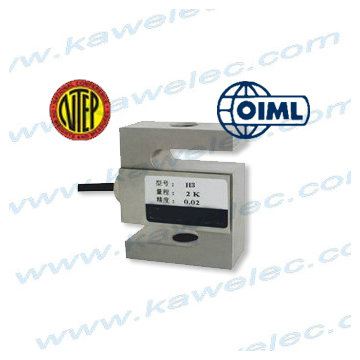

| Features of KH3 S Type Load Cell : | |||||
| 1,Alloy steel IP67 “S” type load cell | |||||
| 2,Suitable for crane and hanging hopper scales | |||||
| 3,Tension and compression loading possible | |||||
| 4,Also available in Imperial capacities and dimensions | |||||
| Capacity of KH3 S Type Load Cell: | |||||
| 25kg C3 S type Load Cell KH3 | |||||
| 50kg C3 S type Load Cell KH3 | |||||
| 100kg C3 S typeLoad Cell KH3 | |||||
| 250kg C3 S type Load Cell KH3 | |||||
| 500kg C3 S type Load Cell KH3 | |||||
| 600kg C3 S type Load Cell KH3 | |||||
| 750kg C3 S type Load Cell KH3 | |||||
| 1.0t C3 S type Load Cell KH3 | |||||
| 2.5t C3 S typeLoad Cell KH3 | |||||
| 5.0t C3 S type Load Cell KH3 | |||||
| 7.5t C3 S type Load Cell KH3 | |||||
| 10t C3 S type Load Cell KH3 | |||||
| 20t C3 S type Load Cell KH3 | |||||
| 30t C3 S type Load Cell KH3 | |||||
| Specification of KH3 S Type Load Cell: | |||||
| Accuracy Class | OIML R60 C3 | OIML R60 C4 | C3 | ||
| Output sensitivity(=FS) | mV/V | 2.0 ± 0.004 (3.0 ± 0.008 for imperial capacities) | |||
| Maximum Capacity(Emax) | t | 0.1, 0.15, 0.2, 0.3, 0.5, 0.6, 0.75, 1.0, 1.5, 2.0, 2.5 |
0.025, 0.05, 3.0, 5.0, 7.5, 10, 15, 20, 30 | ||
| Maximum number of load cell intervals(Nlc) | 3000 | 4000 | 3000 | ||
| Ratio of minimum LC verification interval Y=Emax/Vmin | 10000 | 20000 | 10000 | ||
| Combined Error | %FS | ≤ ± 0.0200 | ≤ ± 0.018 | ≤ ± 0.020 | |
| Safe overload | of Emax | 1.5 | |||
| Ultimate overload | of Emax | 3 | |||
| Zero Balance | of FS | ≤ ± 1.5 % (≤ ± 1.0 % for imperial capacities) | |||
| Excitation, recommended voltage | V | 5 ~ 12 | |||
| Excitation maximum | V | 18 | |||
| Terminal resistance, input | Ω | 350 ± 3.5 | |||
| Terminal resistance, output | Ω | 351 ± 2 | |||
| Insulation impedance | MΩ | ≥5000(at 50VDC) | |||
| Temperature range, compensated | ℃ | -10 ~ +40 | |||
| Temperature range, operation | ℃ | -35 ~ +65 | |||
| Element material | Alloy steel | ||||
| Ingress Protection (according to EN60529) | IP67 | ||||
| Ingress Protection (according to EN60529) | IP67 | ||||
| Recommended torque on fixation bolts | Nm | M12: 100 | M12: 100 | M16: 160 | |

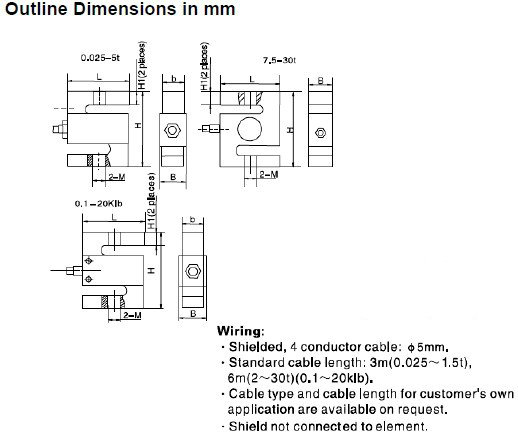

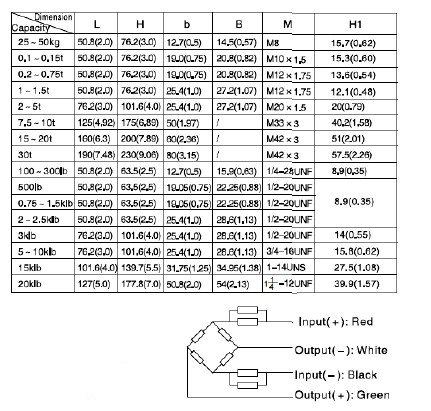

| Wiring of KH3 S Type Load Cell: | |||||
| Shielded, 4 conductor cable: Ø5mm. | |||||
| Standard cable length is 3m/6m | |||||
| Shield is not connected to element | |||||
| Different cable type and length are available on customer request. | |||||
| Application of KH3 S Type Load Cell: | |||||
| Tension and compression loading possible | |||||
| Specification of KH3 S Type Load Cell: | |||||
| Accuracy Class | OIML R60 C3 | OIML R60 C4 | C3 | ||
| Output sensitivity(=FS) | mV/V | 2.0 ± 0.004 (3.0 ± 0.008 for imperial capacities) | |||
| Maximum Capacity(Emax) | t | 0.1, 0.15, 0.2, 0.3, 0.5, 0.6, 0.75, 1.0, 1.5, 2.0, 2.5 |
0.025, 0.05, 3.0, 5.0, 7.5, 10, 15, 20, 30 | ||
| Maximum number of load cell intervals(Nlc) | 3000 | 4000 | 3000 | ||
| Ratio of minimum LC verification interval Y=Emax/Vmin | 10000 | 20000 | 10000 | ||
| Combined Error | %FS | ≤ ± 0.0200 | ≤ ± 0.018 | ≤ ± 0.020 | |
| Safe overload | of Emax | 1.5 | |||
| Ultimate overload | of Emax | 3 | |||
| Zero Balance | of FS | ≤ ± 1.5 % (≤ ± 1.0 % for imperial capacities) | |||
| Excitation, recommended voltage | V | 5 ~ 12 | |||
| Excitation maximum | V | 18 | |||
| Terminal resistance, input | Ω | 350 ± 3.5 | |||
| Terminal resistance, output | Ω | 351 ± 2 | |||
| Insulation impedance | MΩ | ≥5000(at 50VDC) | |||
| Temperature range, compensated | ℃ | -10 ~ +40 | |||
| Temperature range, operation | ℃ | -35 ~ +65 | |||
| Element material | Alloy steel | ||||
| Ingress Protection (according to EN60529) | IP67 | ||||
| Ingress Protection (according to EN60529) | IP67 | ||||
| Recommended torque on fixation bolts | Nm | M12: 100 | M12: 100 | M16: 160 | |
| Application of KH3 S Type Load Cell: | |||||
| Tension and compression loading possible |
| Application of KH3 S Type Load Cell: | |||||
| Tension and compression loading possible |
