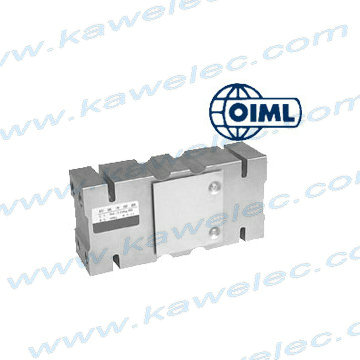

| Features of KB6F Single Point Load Cell : |
| 1, Stainless steel IP67 single point load cell |
| 2, Bending beam |
| 3,Suitable for belt, platform and other electronic weighing scales |
| |
| Capacity of KB6F Single Point Load Cell: |
| 100kg C3 Single Point Load Cell KB6F |
| 150kg C3 Single PointLoad Cell KB6F |
| 200kg C3 Single Point Load Cell KB6F |
| 250kg C3 Single Point Load Cell KB6F |
| 500kg C3 Single Point Load Cell KB6F |
| 750kg C3 Single PointLoad Cell KB6F |
| 1000kg C3 Single Point Load Cell KB6F |
| 2000kg C3 Single Point Load Cell KB6F |
| |
|
|
|
|
|
| Specification of KB6F Single Point Load Cell: |
| Accuracy |
|
C3 not approved |
OIML R60 C3 |
| Output sensitivity(=FS) |
mV/V |
2.0±0.2 |
| Maximum Capacity(Emax) |
kg |
100,150,200 |
250 |
500 |
750, 1000, 2000 |
| Maximum number of load cell intervals(Nlc) |
|
3000 |
| Ratio of minimum LC verification interval Y=Emax/Vmin |
|
5000 |
12000 |
| Combined Error |
%FS |
≦±0.023 |
| Safe overload |
of Emax |
1.5 |
|
| Ultimate overload |
of Emax |
3 |
| Zero Balance |
of FS |
＜±1.0% |
|
| Excitation, recommended voltage |
V |
5 ~ 12 |
| Excitation maximum |
V |
18 |
|
| Terminal resistance, input |
Ω |
385±5 |
| Terminal resistance, output |
Ω |
350±3 |
|
| Maximum platform size |
mm |
400*400 |
600*800 |
1200*1200 |
| Insulation impedance |
MΩ |
≥5000(at 50VDC) |
|
| Temperature range, compensated |
℃ |
-10 ~ +40 |
| Temperature range, operation |
℃ |
-35 ~ +65 |
|
| Element material |
|
Stainless steel |
| Ingress Protection (according to EN60529) |
|
IP67 |
| Recommended torque on fixation bolts |
Nm |
M12: 100 |
M12: 100 |
M16: 160 |
| |
|
|
|
|
|

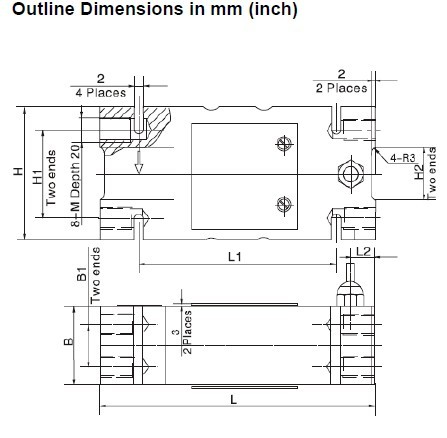

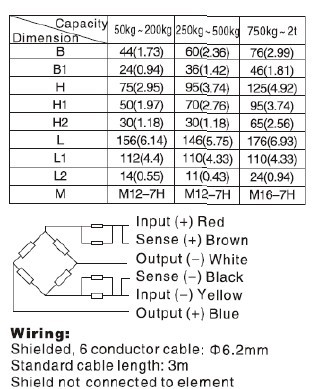

| Wiring of KB6F Single Point Load Cell: |
| Shielded, 6 conductor cable: Ø6.2mm. |
| Standard cable length is 3m |
| Shield is not connected to element |
| Different cable type and length are available on customer request. |
| |
|
|
|
|
|
| Application of KB6F Single Point Load Cell: |
| Suitable for belt, platform and other electronic weighing scalesS |
