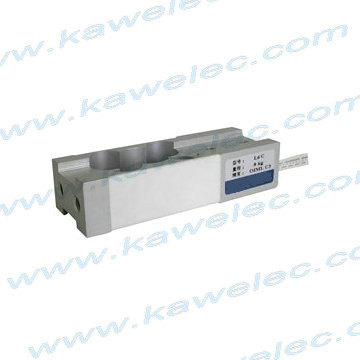

| Features of KL6C Single Point Load Cell : |
| 1,KL6C load cells are available in the capacities 3kg to 50kg. |
| 2,Alumium construction construction with parallel beam. |
| 3,Silicon adhesive sealed, surface anodized and anti-corrosion. |
| 4,Intergral structure and easy installation. |
| 5,Suitable for pricing scale, counting scale, electroic balance and other electronic weighing devices |
| 6,Capacity:3kg to 50kg . |
| 7,High accuracy. |
| 8,Max. platform size: 250x350mm. |
| 9,Installed screw request M8,8.8 class with oiled screw,torque 25Nm. |
| |
|
|
|
|
| Capacity of KL6C Single Point Load Cell: |
| 3kg C3 Single Point Load Cell KL6C |
| 5kg C3 Single PointLoad Cell KL6C |
| 10kg C3 Single Point Load Cell KL6C |
| 20kg C3 Single Point Load Cell KL6C |
| 30kg C3 Single Point Load Cell KL6C |
| 40kg C3 Single PointLoad Cell KL6C |
| 50kg C3 Single Point Load Cell KL6C |
| |
|
|
|
|
| Specification of KL6C Single Point Load Cell: |
| Capacity |
|
3/5/8/20/30/50 |
| Accuracy |
kg |
C3D |
C3 |
C3G |
| Approvals |
|
|
OIML R60 C3 |
|
| Maximum numberof verification intervals |
n max |
2500 |
3000 |
4000 |
| Minimum load cell verification interval |
v min |
Emax/5000 |
Emax/7000 |
Emax/11000 |
| Combined error |
(%FS) |
≤±0.030 |
≤±0.020 |
≤±0.015 |
| Creep |
(%FS/30min) |
≤±0.020 |
≤±0.0167 |
≤±0.0125 |
| Temperature effect on sensitivity |
(%FS/10℃) |
≤±0.021 |
≤±0.0175 |
≤±0.0131 |
| Temperature effect on zero |
(%FS/10℃) |
≤±0.028 |
≤±0.020 |
≤±0.0127 |
| Output sensitivity |
(mv/v) |
1.9±0.2 |
| Input resistance |
(Ω) |
409±6 |
| Output resistance |
(Ω) |
350±3 |
| Insulation resistance |
(MΩ) |
≥5000(50VDC) |
| Zero balance |
(%FS) |
2 |
| Temperature,compensated |
(℃) |
-10～+40 |
| Temperature,operating |
(℃) |
-35～+65 |
| Excitation,Recommended |
(V) |
5～12(DC) |
| Excitation,Max |
(V) |
18(DC) |
| Safe overload |
(%FS) |
150 |
| Ultimate overload |
(%FS) |
300 |
| Corner correction |
|
0.02% load value/100mm |
| |
|
|
|
|

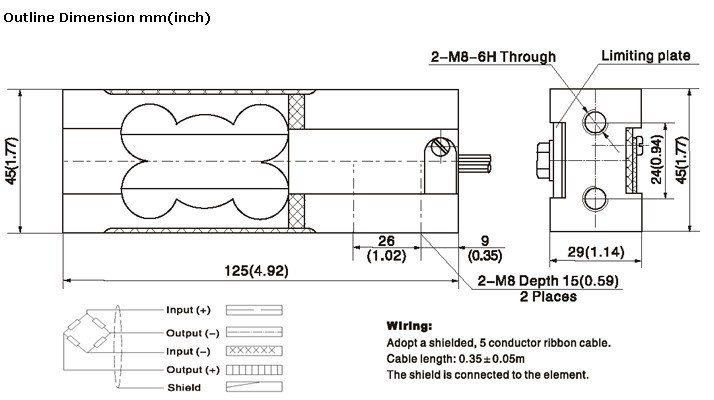

| Wiring of KL6C Single Point Load Cell: |
| Shielded, 6 conductor cable: Ø6.2mm. |
| Standard cable length is 0.35±0.05m |
| Shield is not connected to element |
| Different cable type and length are available on customer request. |
| |
|
|
|
|
| Application of KL6C Single Point Load Cell: |
| Suitable for pricing scale, counting scale, electroic balance and other electronic weighing devices |
