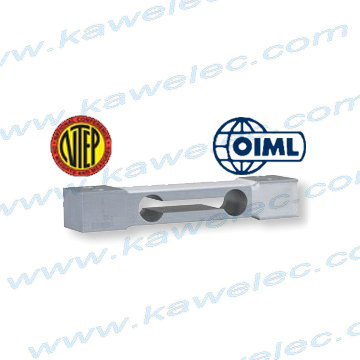

| Features of KL6D Single Point Load Cell : |
|
| 1,Aluminium-Alloy IP65 single point load cell. |
|
| 2,Colourless anodized |
|
| 3,Suitable for pricing scales, bench scales, etc. |
|
| 4,Maximum platform size: 250 x 350 mm |
|
| |
|
|
|
|
|
| Capacity of KL6D Single Point Load Cell: |
|
| 2.5kg C3 Single Point Load Cell KL6D |
|
| 3kg C3 Single PointLoad Cell KL6D |
|
| 5kg C3 Single Point Load Cell KL6D |
|
| 6kg C3 Single Point Load Cell KL6D |
|
| 8kg C3 Single Point Load Cell KL6D |
|
| 10kg C3 Single PointLoad Cell KL6D |
|
| 15kg C3 Single Point Load Cell KL6D |
|
| 20kg C3 Single Point Load Cell KL6D |
|
| 30kg C3 Single PointLoad Cell KL6D |
|
| 35kg C3 Single Point Load Cell KL6D |
|
| 40kg C3 Single Point Load Cell KL6D |
|
| 50kg C3 Single Point Load Cell KL6D |
|
| |
|
|
|
|
|
| Specification of KL6D Single Point Load Cell: |
|
| Accuracy |
|
C3D |
OIML R60 C3 |
OIML R60 C4 |
OIML R60 C5 |
| Output sensitivity(=FS) |
mV/V |
1.8±0.2 |
2.0±0.2 |
| Maximum Capacity(Emax) |
kg |
2.5 |
3, 5, 6, 8, 10, 15, 20, 30, 35, 40, 50 |
| Maximum number of load cell intervals(Nlc) |
|
3000 |
3000 |
4000 |
5000 |
| Ratio of minimum LC verification interval Y=Emax/Vmin |
|
7000 |
10000 |
15000 |
20000 |
| Combined Error |
%FS |
≦±0.0200 |
≤ ± 0.0175 |
≤ ± 0.0140 |
| Safe overload |
of Emax |
1.5 |
| Ultimate overload |
of Emax |
3 |
| Zero Balance |
of FS |
＜±2.0% |
| Excitation, recommended voltage |
V |
5 ~ 12 |
| Excitation maximum |
V |
18 |
| Terminal resistance, input |
Ω |
409 ± 6 |
| Terminal resistance, output |
Ω |
350±3 |
| Insulation impedance |
MΩ |
≥5000(at 50VDC) |
| Temperature range, compensated |
℃ |
-10 ~ +40 |
| Temperature range, operation |
℃ |
-35 ~ +65 |
| Element material |
|
Allumilum steel |
| Ingress Protection (according to EN60529) |
|
IP67 |
| Recommended torque on fixation bolts |
Nm |
< 30kg: 6 ≥30kg:10 |
| Excitation,Max |
(V) |
18(DC) |
| Safe overload |
(%FS) |
150 |
|
| Ultimate overload |
(%FS) |
300 |
| Corner correction |
|
0.02% load value/100mm |
|
| |
|
|
|
|
|

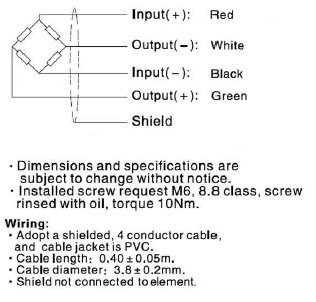

| Wiring of KH6G Single Point Load Cell: |
| Shielded, 4 conductor cable: Ø3.8mm. |
|
| Standard cable length is 0.4±0.05m |
|
| Shield is not connected to element |
|
| Different cable type and length are available on customer request. |
|
| |
|
|
|
|
|
| Application of KL6D Single Point Load Cell: |
|
| Suitable for pricing scales, bench scales, etc. |
|
