Product show

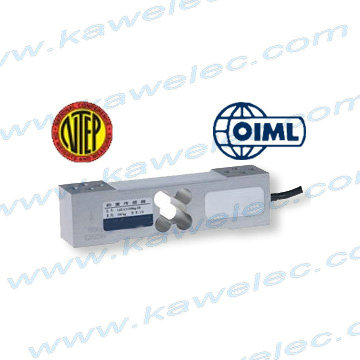

Single Point Load Cells KL6E
Category: Load Cells >> Single Point Load Cells >>

Single  Point  Load  Cell  50kg~300kg,
Alumium, IP65, C3  load  cell,
High  Sensitivity,  High  Accuracy

Features of KL6E Single Point Load Cell : 　 　 　
1,Aluminium-Alloy IP65 single point load cell. 　 　 　
2,Colourless anodized 　 　 　
3,Suitable for pricing scales, bench scales, etc. 　 　 　
4,Maximum platform size: 400 x 400 mm 　 　 　
　 　 　 　 　 　 　 　
Capacity of KL6E Single Point Load Cell: 　 　 　
50kg C3 Single Point Load Cell KL6E 　 　 　
60kg C3 Single PointLoad Cell KL6E 　 　 　
80kg C3 Single Point Load Cell KL6E 　 　 　
100kg C3 Single Point Load Cell KL6E 　 　 　
150kg C3 Single Point Load Cell KL6E 　 　 　
200kg C3 Single PointLoad Cell KL6E 　 　 　
300kg C3 Single Point Load Cell KL6E 　 　 　
　 　 　 　 　 　 　 　
Specification  of KL6E Single Point Load Cell: 　 　 　
Accuracy  　 OIML R60 C3 OIML R60 C4 OIML R60 C5
Output sensitivity(=FS) mV/V 2.0 ± 0.2
Maximum Capacity(Emax) kg 50, 60,
80,
100,		 150,
200,
300		 50, 60,
80,
100,		 150,
200,
300		 50, 60,
80,
100		 150,
200,
300
Maximum number of load cell intervals(Nlc) 　 3000 4000 5000
Ratio of minimum LC verification interval Y=Emax/Vmin 　 10000 15000 20000
Combined Error %FS ≦±0.0230 ≤ ± 0.0175 ≤ ± 0.0140
Safe overload of Emax 1.5
Ultimate overload of Emax 3
Zero Balance of FS ＜±2.0%
Excitation, recommended voltage V 5 ~ 12
Excitation maximum V 18
Terminal resistance, input Ω 406 ± 6
Terminal resistance, output Ω 350±3
Insulation impedance MΩ ≥5000(at 50VDC)
Temperature range, compensated ℃  -10 ~ +40
Temperature range, operation ℃  -35 ~ +65
Element material 　 Allumilum steel
Ingress Protection (according to EN60529) 　 IP67
Recommended torque on fixation bolts Nm 10
Excitation,Max (V)  18(DC)
Safe overload  (%FS)  150 　 　 　
Ultimate overload  (%FS)  300
Corner correction 　 0.02% load value/100mm
　 　 　 　 　 　 　 　

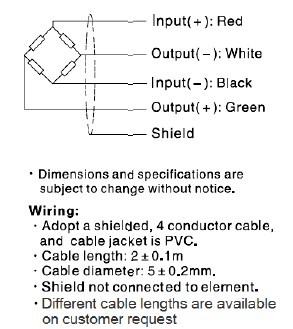

Wiring of KL6E Single Point Load Cell: 　 　
Shielded, 4 conductor cable: Ø5mm. 　 　 　
Standard cable length is 2±0.1m 　 　 　
Shield is not connected to element 　 　 　
Different cable type and length are available on customer request. 　 　 　
　 　 　 　 　 　 　 　
Application of KL6E Single Point Load Cell: 　 　 　
Suitable for pricing scales, bench scales, etc. 　 　 　

Specification  of KL6E Single Point Load Cell: 　 　 　
Accuracy  　 OIML R60 C3 OIML R60 C4 OIML R60 C5
Output sensitivity(=FS) mV/V 2.0 ± 0.2
Maximum Capacity(Emax) kg 50, 60,
80,
100,		 150,
200,
300		 50, 60,
80,
100,		 150,
200,
300		 50, 60,
80,
100		 150,
200,
300
Maximum number of load cell intervals(Nlc) 　 3000 4000 5000
Ratio of minimum LC verification interval Y=Emax/Vmin 　 10000 15000 20000
Combined Error %FS ≦±0.0230 ≤ ± 0.0175 ≤ ± 0.0140
Safe overload of Emax 1.5
Ultimate overload of Emax 3
Zero Balance of FS ＜±2.0%
Excitation, recommended voltage V 5 ~ 12
Excitation maximum V 18
Terminal resistance, input Ω 406 ± 6
Terminal resistance, output Ω 350±3
Insulation impedance MΩ ≥5000(at 50VDC)
Temperature range, compensated ℃  -10 ~ +40
Temperature range, operation ℃  -35 ~ +65
Element material 　 Allumilum steel
Ingress Protection (according to EN60529) 　 IP67
Recommended torque on fixation bolts Nm 10
Excitation,Max (V)  18(DC)
Safe overload  (%FS)  150 　 　 　
Ultimate overload  (%FS)  300
Corner correction 　 0.02% load value/100mm

Application of KL6E Single Point Load Cell:
Suitable for pricing scales, bench scales, etc.
Application of KL6E Single Point Load Cell:
Suitable for pricing scales, bench scales, etc.
