Product show

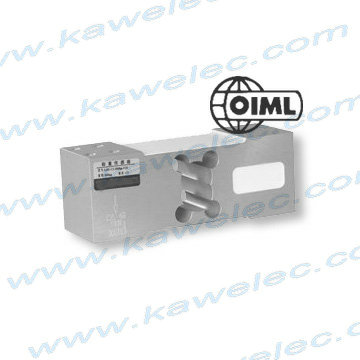

Single Point Load Cells KL6G
Category: Load Cells >> Single Point Load Cells >>

Single  Point  Load  Cell  50kg~500kg,
Alumium,,IP65,,C3  load  cell,
High  Sensitivity,  High  Accuracy
Features of KL6G Single Point Load Cell : 　
1,Aluminium-Alloy IP65 single point load cell. 　 　 　
2,Colourless anodized 　 　 　 　 　
3,Suitable for pricing scales, bench scales, etc. 　 　 　
4,Maximum platform size: 600 x600 mm 　 　 　 　
　 　 　 　 　 　
Capacity of KL6G Single Point Load Cell: 　
50kg C3 Single Point Load Cell KL6G 　
100kg C3 Single PointLoad Cell KL6G 　
150kg C3 Single Point Load Cell KL6G 　
200kg  C3 Single Point Load Cell KL6G 　
250kg C3 Single Point Load Cell KL6G 　
300kg C3 Single PointLoad Cell KL6G 　
500kg C3 Single Point Load Cell KL6G 　
　 　 　 　 　 　
Specification  of KL6G Single Point Load Cell: 　
Accuracy  　 OIML R60 C3 OIML R60 C4
Output sensitivity(=FS) mV/V 2.0±0.2
Maximum Capacity(Emax) kg 50, 100, 150, 200, 250,
300, 500,600		 150, 200, 250, 300,
500, 600
Maximum number of load cell intervals(Nlc) 　 3000 4000
Ratio of minimum LC verification interval Y=Emax/Vmin 　 12000 15000
Combined Error %FS ≦±0.0200 ≤ ± 0.0170
Safe overload of Emax 1.5
Ultimate overload of Emax 3
Zero Balance of FS ＜±2.0%
Excitation, recommended voltage V 5 ~ 12
Excitation maximum V 18
Terminal resistance, input Ω 409 ± 6 / 1065 ± 151 409 ± 6
Terminal resistance, output Ω 350 ± 3 / 1000 ± 51 350 ± 3
Insulation impedance MΩ ≥ 5000 ( at 50VDC )
Temperature range, compensated ℃  -10 ~ +40
Temperature range, operation ℃  -35 ~ +65
Element material 　 Aluminum steel
Ingress Protection (according to EN60529) 　 IP65
Recommended torque on fixation bolts Nm 20
　 　 　 　 　 　

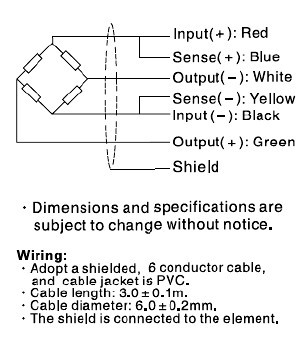

Wiring of KL6G Single Point Load Cell:
Shielded, 6 conductor cable: Ø5mm. 　
Standard cable length is 3±0.1m 　
Shield is not connected to element 　
Different cable type and length are available on customer request. 　
　 　 　 　 　 　
Application of KL6G Single Point Load Cell: 　
Suitable for pricing scales, bench scales, etc 　



Specification  of KL6G Single Point Load Cell: 　
Accuracy  　 OIML R60 C3 OIML R60 C4
Output sensitivity(=FS) mV/V 2.0±0.2
Maximum Capacity(Emax) kg 50, 100, 150, 200, 250,
300, 500,600		 150, 200, 250, 300,
500, 600
Maximum number of load cell intervals(Nlc) 　 3000 4000
Ratio of minimum LC verification interval Y=Emax/Vmin 　 12000 15000
Combined Error %FS ≦±0.0200 ≤ ± 0.0170
Safe overload of Emax 1.5
Ultimate overload of Emax 3
Zero Balance of FS ＜±2.0%
Excitation, recommended voltage V 5 ~ 12
Excitation maximum V 18
Terminal resistance, input Ω 409 ± 6 / 1065 ± 151 409 ± 6
Terminal resistance, output Ω 350 ± 3 / 1000 ± 51 350 ± 3
Insulation impedance MΩ ≥ 5000 ( at 50VDC )
Temperature range, compensated ℃  -10 ~ +40
Temperature range, operation ℃  -35 ~ +65
Element material 　 Aluminum steel
Ingress Protection (according to EN60529) 　 IP65
Recommended torque on fixation bolts Nm 20
