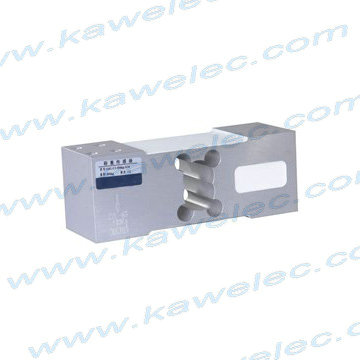

| Features of KH6G Single Point Load Cell : |
| 1,Alloy steel IP66 single point load cell |
| 2,Nickel plated |
| 3,Suitable for platform belt and other electronic scales |
| 4, Recommended platform : 600 x 600 mm or 1200 x 1200 mm |
| |
|
|
|
|
|
| Capacity of KH6G Single Point Load Cell: |
| 100kg C3 Single Point Load Cell KH6G |
|
|
|
|
|
| 150kg C3 Single PointLoad Cell KH6G |
|
|
|
|
|
| 200kg C3 Single Point Load Cell KH6G |
|
|
|
|
|
| 250kg C3 Single Point Load Cell KH6G |
|
|
|
|
|
| 300kg C3 Single Point Load Cell KH6G |
|
|
|
|
|
| 500kg C3 Single PointLoad Cell KH6G |
|
|
|
|
|
| 600kg C3 Single Point Load Cell KH6G |
|
|
|
|
|
| |
|
|
|
|
|
| Specification of KH6G Single Point Load Cell: |
| Accuracy |
|
C3 |
| Output sensitivity(=FS) |
mV/V |
2.0±0.2 |
| Maximum Capacity(Emax) |
kg |
100, 150, 200, 250, 300, 500, 600 |
| Maximum number of load cell intervals(Nlc) |
|
3000 |
| Ratio of minimum LC verification interval Y=Emax/Vmin |
|
7500 |
| Combined Error |
%FS |
≦±0.0200 |
| Safe overload |
of Emax |
1.5 |
| Ultimate overload |
of Emax |
3 |
| Zero Balance |
of FS |
＜±1.0% |
| Excitation, recommended voltage |
V |
5 ~ 12 |
| Excitation maximum |
V |
18 |
| Terminal resistance, input |
Ω |
384±4 |
| Terminal resistance, output |
Ω |
351±2 |
| Maximum platform size |
mm |
400*400 |
| Insulation impedance |
MΩ |
≥5000(at 50VDC) |
| Temperature range, compensated |
℃ |
-10 ~ +40 |
| Temperature range, operation |
℃ |
-35 ~ +70 |
| Element material |
|
Alloy steel, nickel plated |
| Ingress Protection (according to EN60529) |
|
IP66 |
| Recommended torque on fixation bolts |
Nm |
20 |
| |
|
|
|
|
|

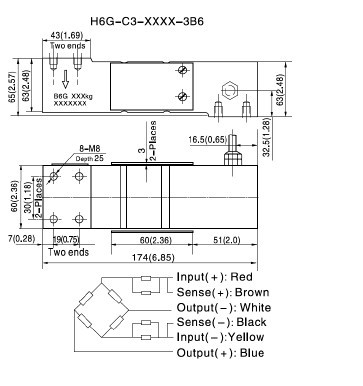

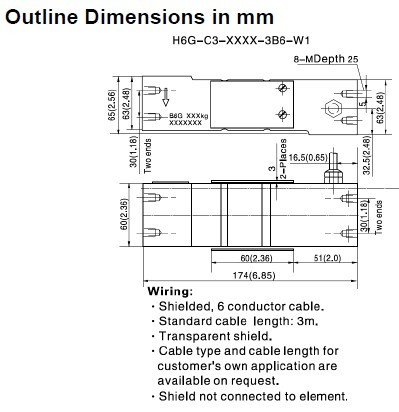

| Wiring of KH6G Single Point Load Cell: |
| Shielded, 6 conductor cable: Ø6.2mm. |
| Standard cable length is 3m |
| Shield is not connected to element |
| Different cable type and length are available on customer request. |
| |
|
|
|
|
|
| Application of KH6G Single Point Load Cell: |
| Suitable for platform belt and other electronic scales. |
