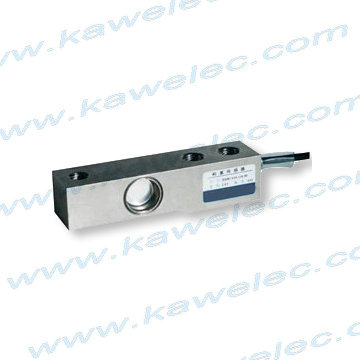

| Features of KHM8C Shear Beam Load Cell : |
| 1,Alloy steel IP67 shear beam load cell |
| 2,Adhesive sealed |
| 3,Suitable for platform weighing, bed weighing, etcetera |
| 4,High accuracy, high reliability |
| |
|
|
|
|
|
| Capacity of KHM8C Shear Beam Load Cell: |
| 500kg C3 Shear Beam Load Cell KHM8C |
| 1t C3 Shear Beam Load Cell KHM8C |
| 1.5t C3 Shear Beam Load Cell KHM8C |
| 2t C3 Shear Beam Load Cell KHM8C |
| 2.5t C3 Shear Beam Load Cell KHM8C |
| 3t C3 Shear Beam Load Cell KHM8C |
| 3.5t C3 Shear Beam Load Cell KHM8C |
| 10t C3 Shear Beam Load Cell KHM8C |
| |
|
|
|
|
|
| Specification of KHM8C Shear Beam Load Cell: |
| Accuracy |
|
C3 |
| Output sensitivity(=FS) |
mV/V |
2.0±0.004 |
| Maximum Capacity(Emax) |
t |
0.5, 1, 1.5, 2, 3, 5, 10 |
| Maximum number of load cell intervals(Nlc) |
|
3000 |
| Ratio of minimum LC verification interval Y=Emax/Vmin |
|
7500 |
| Combined Error |
%FS |
±0.0200 |
| Safe overload |
of Emax |
1.5 |
| Ultimate overload |
of Emax |
3 |
| Zero Balance |
of FS |
＜±1.5% |
| Excitation, recommended voltage |
V |
5 ~ 12 |
| Excitation maximum |
V |
18 |
| Terminal resistance, input |
Ω |
350 ± 3.5 |
| Terminal resistance, output |
Ω |
351 ± 2 |
| Insulation impedance |
MΩ |
≥5000(at 50VDC) |
| Temperature range, compensated |
℃ |
-10 ~ +40 |
| Temperature range, operation |
℃ |
-35 ~ +65 |
| Element material |
|
Alloy steel |
| Ingress Protection (according to EN60529) |
|
IP68 |
| Recommended torque on fixation bolts |
Nm |
M12:100 M18:200 |
| |
|
|
|
|
|
| Wiring of KHM8C Shear Beam Load Cell: |
| Shielded, 6 conductor cable: Ø5mm. |
| Standard cable length is 4m/6m |
| Shield is not connected to element |
| Different cable type and length are available on customer request. |
| |
|
|
|
|
|
| Application of KHM8C Shear Beam Load Cell: |
| Suitable for platform weighing, bed weighing, etcetera |
