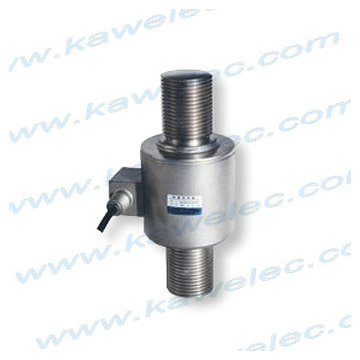

Column Type Load Cell KBM14D
Category: Load Cells >> Column Type Load Cells >>
Compression  Load  Cell  10t~100t,
Stainless  steel,  IP68  load  cell,
High  Sensitivity,  High  Accuracy

Features of KBM14D Column Type Load Cell :
 1,Stainless steel IP68 compression load cell
 2,Hermetically closed
 3,Suitable for vehicle and hopper scales and vehicle testing facilities
 4,Protection against lightning surges

Capacity of KBM14D Column Type Load Cell:
10t C2 Column Type Load Cell KBM14D
20t C2 Column Type Load Cell KBM14D
25t  C2 Column Type Load Cell KBM14D
30t  C2 Column Type Load Cell KBM14D
40t C2 Column Type Load Cell KBM14D
50t  C2 Column Type Load Cell KBM14D
100t C2 Column Type Load Cell KBM14D

Specification  of KBM14D Column Type Load Cell:
Accuracy     C3   OIML R60 C3   OIML R60 C4
Output sensitivity(=FS) mV/V 2.0±0.002
Maximum Capacity(Emax) t 0,5, 1, 2, 3, 5 10, 20, 25, 30, 40, 50
Maximum number of load cell intervals(Nlc)   3000 4000
Ratio of minimum LC verification interval Y=Emax/Vmin   10000 15000
Combined Error %FS ≤ ± 0.023 ≤ ± 0.0174
Safe overload of Emax 1.5
Ultimate overload of Emax 3
Zero Balance of FS ≤ ± 1.0 %
Excitation, recommended voltage V 5 ~ 12
Excitation maximum V 18
Terminal resistance, input Ω 700 ± 7
Terminal resistance, output Ω 703± 4
Insulation impedance 5000(at 50VDC)
Temperature range, compensated  -10 ~ +40
Temperature range, operation  -35 ~ +65
Element material   Stainless steel
Ingress Protection (according to EN60529)   IP68
Recommended torque on fixation bolts Nm M12:100 M18:200

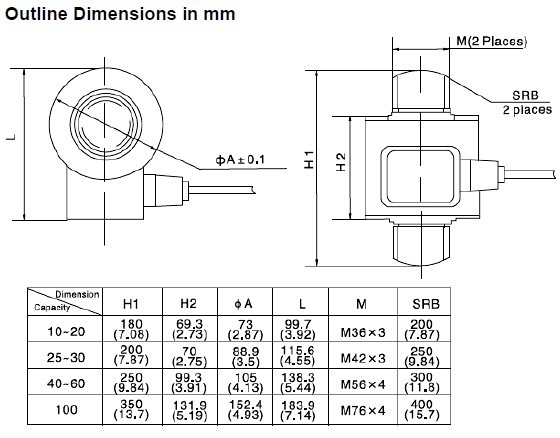

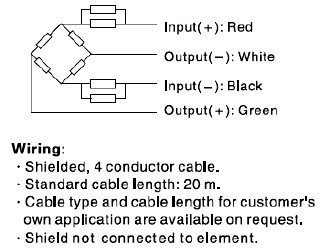

Wiring of KBM14D Column Type Load Cell:
Shielded, 4 conductor cable: Ø5mm.
Standard cable length is 20m
Shield is not connected to element
Different cable type and length are available on customer request.

Application of KBM14D Column Type Load Cell:
Suitable for vehicle and hopper scales and vehicle testing facilities

Specification  of KBM14D Column Type Load Cell:
Accuracy     C3   OIML R60 C3   OIML R60 C4
Output sensitivity(=FS) mV/V 2.0±0.002
Maximum Capacity(Emax) t 0,5, 1, 2, 3, 5 10, 20, 25, 30, 40, 50
Maximum number of load cell intervals(Nlc)   3000 4000
Ratio of minimum LC verification interval Y=Emax/Vmin   10000 15000
Combined Error %FS ≤ ± 0.023 ≤ ± 0.0174
Safe overload of Emax 1.5
Ultimate overload of Emax 3
Zero Balance of FS ≤ ± 1.0 %
Excitation, recommended voltage V 5 ~ 12
Excitation maximum V 18
Terminal resistance, input Ω 700 ± 7
Terminal resistance, output Ω 703± 4
Insulation impedance 5000(at 50VDC)
Temperature range, compensated  -10 ~ +40
Temperature range, operation  -35 ~ +65
Element material   Stainless steel
Ingress Protection (according to EN60529)   IP68
Recommended torque on fixation bolts Nm M12:100 M18:200

Application of KBM14D Column Type Load Cell:
Suitable for vehicle and hopper scales and vehicle testing facilities
Application of KBM14D Column Type Load Cell:
Suitable for vehicle and hopper scales and vehicle testing facilities
