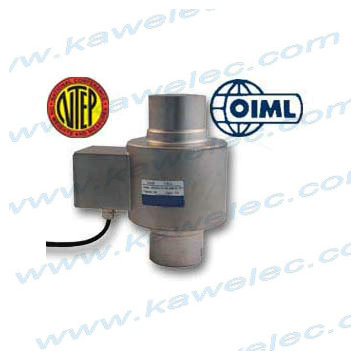

| Features of KBM14G Column Type Load Cell : |
| 1,Stainless steel IP68 compression load cell |
| 2,Hermetically closed |
| 3,Suitable for vehicle and hopper scales and vehicle testing facilities |
| 4,Protection against lightning surges |
| |
|
|
|
|
|
| Capacity of KBM14G Column Type Load Cell: |
| 10t C3 Column Type Load Cell KBM14G |
| 20t C3 Column Type Load Cell KBM14G |
| 30t C3 Column Type Load Cell KBM14G |
| 40t C3 Column Type Load Cell KBM14G |
| 50t C3 Column Type Load Cell KBM14G |
| 10t C4 Column Type Load Cell KBM14G |
| 20t C4 Column Type Load Cell KBM14G |
| 30t C4 Column Type Load Cell KBM14G |
| 40t C4 Column Type Load Cell KBM14G |
| 50t C4 Column Type Load Cell KBM14G |
| |
|
|
|
|
|
| Specification of KBM14G Column Type Load Cell: |
| Accuracy |
|
OIML R60 C4 |
OIML R60 C3 |
| Output sensitivity(=FS) |
mV/V |
2.0±0.02 |
| Maximum Capacity(Emax) |
t |
10, 20, 30, 40, 50 |
10, 20,30,40,50 |
30, 40, 50 |
| Maximum number of load cell intervals(Nlc) |
|
4000 |
3000 |
| Ratio of minimum LC verification interval Y=Emax/Vmin |
|
8800 |
8800 |
12000 |
| Combined Error |
%FS |
≤ ± 0.020 |
| Safe overload |
of Emax |
1.5 |
| Ultimate overload |
of Emax |
3 |
| Zero Balance |
of FS |
≤ ± 1.0 % |
| Excitation, recommended voltage |
V |
5 ~ 12 |
| Excitation maximum |
V |
18 |
| Terminal resistance, input |
Ω |
700 ± 7 |
| Terminal resistance, output |
Ω |
700± 7 |
| Insulation impedance |
MΩ |
≥5000(at 50VDC) |
| Temperature range, compensated |
℃ |
-10 ~ +40 |
| Temperature range, operation |
℃ |
-35 ~ +65 |
| Element material |
|
Stainless steel |
| Ingress Protection (according to EN60529) |
|
IP68 |
| Recommended torque on fixation bolts |
Nm |
M12:100 M18:200 |
| |
|
|
|
|
|

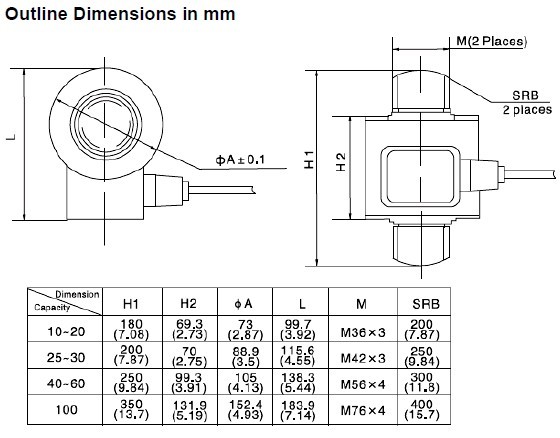

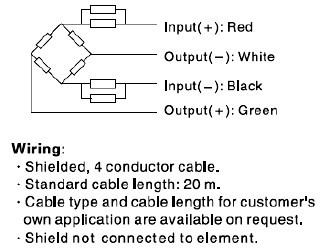

| Wiring of KBM14G Column Type Load Cell: |
| Shielded, 4 conductor cable: Ø5mm. |
| Standard cable length is 18m |
| Shield is not connected to element |
| Different cable type and length are available on customer request. |
| |
|
|
|
|
|
| Application of KBM14G Column Type Load Cell: |
| Suitable for vehicle and hopper scales and vehicle testing facilities |
