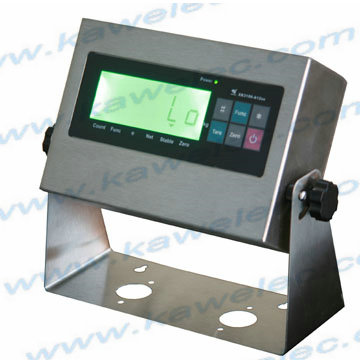

XK3190-A12ss Weighing Indicator, Platform scale indicator
Category: Weighing Indicators >> Platform scale Indicator >>

Applied  in  platform  scale,  floor  scale,

weighing  system  equipped  with  1-4 load  cell

Introduction of XK3190-A12+SS:
Fast speed, high precision  A/D conversion
Anti-vibration software
Applied in platform scale, floor scale, weighing system equipped with 1-4 load cell

Features of XK3190-A12+SS
- A/D conversion with readability 1/30000
- Use inner code to replace weight observing and analysis tolerance
- Software to strength anti-vibration ability
- Zero-tracking, Zero range setup (auto/manual)
- Setup digital filter intensity, range and stable time
- Counting function with unit data save protection in case of power off
- Alarm for low battery and auto power off when low battery
 Optional function of XK3190-A12+SS:
1. KG/LB switch function
2. Animal scale function (A12, A12S only)
3. Two fixed- value outputs function with TTL output

Technical Parameter of XK3190-A12+SS
Model A12 / A12S A12E / A12ES
Input signal range 10mV~15mV
Input sensitivity   1μV/e
Load cell Excitation Dc 5V:/ 150mA
Max. load cell connection 4 at 350 ohm
Display 6 bits LED, 6 status indication
Standard interface RS232C serial communication,Scoreboard at 20mA current loop Parallel printer
