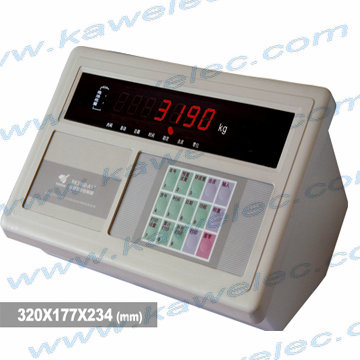

XK3190-A9+ weighing indicator, truck scale indicator
Category: Weighing Indicators >> Truck scale indicator >>

 widely  applied   electronic  floor  scale,

electronic  platform   scale  etc
Introduction of XK3190-A9+:
 adopts high precision double integral A/D conversion technology,
 widely applied in the static weighing system like electronic floor scale, electronic platform scale and electronic truck scale, etc.
　 　 　 　 　 　
Features of XK3190-A9+：
 A/D conversion with readability 1/30000
 Use inner code to replace weight observing and analysis tolerance
Zero range setup (auto/manual)
Fast filled weighing bill print setup
Save 255 vehicle ID/net weight, 100 cargo ID, and 205 weighing records
Weighing data save protection in case of power off
Battery indication and low battery protection
　 　 　 　 　 　
Technical Parameter of XK3190-A9+：
Model A9 /A9P
Input signal range 1mV~24mV
Input sensitivity   ≥1μV/e
Load cell Excitation Dc 8V
Max. load cell connection 8 at 350 ohm
Display 7 bits LED ,7 status indications
Standard interface RS232C serial communication,Scoreboard at 20mA current loop Parallel printer
　
　
