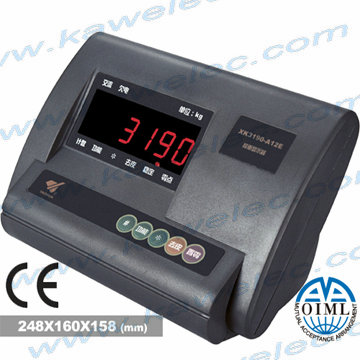

| Introduction of XK3190-A12E: |
| - Fast speed, high precision A/D conversion |
| - Anti-vibration software |
| - Applied in platform scale, floor scale, weighing system equipped with 1-4 load cell. |
| |
|
|
|
|
|
| Features of XK3190-A12E： |
| A/D conversion with readability 1/30000 |
| - Use inner code to replace weight observing and analysis tolerance |
| - Software to strength anti-vibration ability |
| - Zero-tracking, Zero range setup (auto/manual) |
| - Setup digital filter intensity, range and stable time |
| - Counting function with unit data save protection in case of power off |
| - Alarm for low battery and auto power off when low battery |
| Optional function of XK3190-A12E: |
| 1. KG/LB switch function |
| 2. Animal scale function (A12, A12S only) |
| 3. Two fixed- value outputs function with TTL output |
| Technical Parameter of XK3190-A12E： |
| Model |
A12 / A12S A12E / A12ES |
| Input signal range |
10mV~15mV |
| Input sensitivity |
≥1μV/e |
| Load cell Excitation |
Dc 5V:/ 150mA |
| Max. load cell connection |
4 at 350 ohm |
| Display |
6 bits LED, 6 status indication |
| Standard interface |
RS232C serial communication,Scoreboard at 20mA current loop Parallel printer |
