Product show

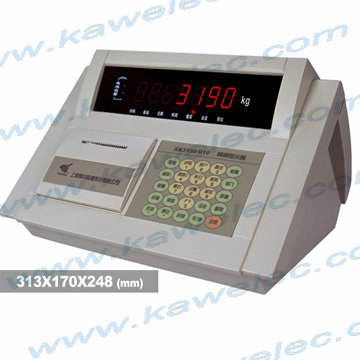

XK3190-D10P weighing indicator, truck scale indicator
Category: Weighing Indicators >> Truck scale indicator >>

applied  in  electronic  floor scale,

electronic  truck  scale,

static  railway  scale
Introduction of XK3190-D10P:
No need to recalibrate when replacing the indicator, only need to input the parameter of the previous indicator. .Good consistency
Support telesoftware upgrading and function change
User-defined Chinese printing content and format
Features of XK3190-D10P：
A/D conversion with readability 1/5000
 Use inner code to replace weight observing and analysis tolerance
 Zero range setup (auto/manual)
 Non-linearity and calibration tolerance correction
 Password management and timing power off function
 Auto/manual, conditional/non-conditional, daily/sorted report print setup
 Fast filled weighing bill print setup
 Save 1500 vehicle ID/net weight, 201 cargo ID/cargo name, 100 customer ID/customer name, 100 notes and 1501 weighing records
 Weighing data save protection in case of power off
 Input character with keyboard or download from PC
Good consistency
Hardware detection and voltage display of load cell signal
 Optional function of XK3190-D10P:
1. KG/LB switch function
2. Animal scale function (A12, A12S only)
3. Two fixed- value outputs function with TTL output
Technical Parameter of XK3190-D10P：
Model D10 D10P
Input signal range  -30mV~30mV
Input sensitivity   ≥1μV/e
Load cell Excitation Dc 5V
Max. load cell connection 8 at 350 ohm or 16 at 350 ohm
Display 7 bits LED, 7 status indications
Standard interface RS232C serial communication,Scoreboard at 20mA current loop Parallel printer
