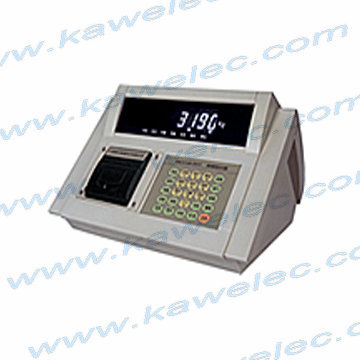

| Features of XK3190-DS1 digital indicators： | |||||
| Digital indicatorFast speed of single chip, good compatibility | |||||
| Can read the output signal of one-way digital load cell | |||||
| Auto/manually amend the deviation of four corners, and can automatically check the operating condition of each digital load cell | |||||
| Can be equipped with a second interface of digital load cell to increase the signal acquisition speed and solve the compatibility problem of digital load cells with different protocols. | |||||
| No need to recalibrate when replacing the indicator, only need to input the parameters of the previous indicator | |||||
| Remote upgrading and reform, and provide the service | |||||
| The printing format is user-defined, serial printing interface and thermal printer for option | |||||
| Reliable protection, anti interference | |||||
| Hardware protection to reduce the external interference and interface damage | |||||
| Technical Parameter of XK3190-DS1 digital indicators： | |||||
| Model | DS1 | ||||
| Input signal range | -30mV~30mV | ||||
| Input sensitivity | ≥1μV/e | ||||
| Load cell Excitation | Dc 5V | ||||
| Max. load cell connection | 8 at 350 ohm or 16 at 350 ohm | ||||
| Display | 7 bits LED, 7 status indications | ||||
| Standard interface | RS232C serial communication,Scoreboard at 20mA current loop Parallel printer | ||||
