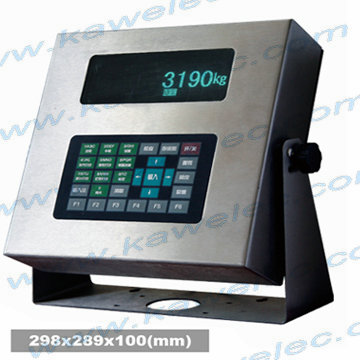

XK3190-DS2 weighing indicator,digital truck scale indicator
Category: Weighing Indicators >> Digital truck scale indicator >>

Applied  in  static  weighing  system,

equipped  with  1~16  digital  load  cell
Introduction of XK3190-DS2 digital indicators
32-bits fast speed and high performance ARM processor and effective
convenient character input and personal operating window
Applied in static weighing system equipped with 1~16 digital load cell
Features of XK3190-DS2 digital indicators：
Connect with digital load cell
 Auto/manual angel correction
 Use inner code to replace weight observing and analysis tolerance
 Password management and timing power off function
 Auto/manual, daily/sorted report print setup
 Fast filled weighing bill print setup
 Save 1000 vehicle ID/net weight, 1000 cargo ID/cargo name, 1000 weighing records
 Weighing data save protection in case of power off
 Input character with keyboard
 Recall vehicle ID and cargo name by shortcut key
　 　 　 　 　 　
Technical Parameter of XK3190-DS2 digital indicators：
Model DS2
Digital load cell connection RS422/RS485
Load cell connection distance 1000M
Load cell Excitation Dc 12V
Max. load cell connection 16
Display Dot-matrix VFD Dot-matrix LCD
Standard interface RS232C serial communication,Scoreboard at 20mA current loop,Parallel printer
