Product show

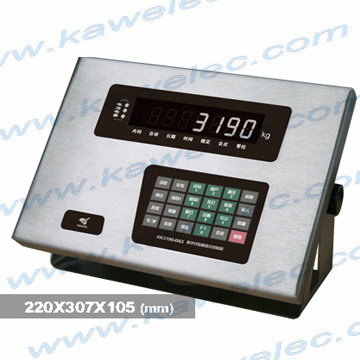

XK3190-DS3 weighing indicator,digital truck scale indicator
Category: Weighing Indicators >> Digital truck scale indicator >>
AD/DC  power  supply,   wide  voltage  input

Interface   adopts  new  magnet-proof  technology

Simple to   debug
Technical Parameter of XK3190-DS3  digital indicators:
Digital load cell connection
Connection method: RS485
Connection distance: About 1000 meters
Connection quantity: 1~16
Communication protocol of load cell: YAOHUA
Load cell power: DC 12V,0.8A(Max)
Display of XK3190-DS3  digital indicators
Display method: 7 bits super bright LED display,10 indications
Display range: -325000~325000(d=10) -900000~900000
Division:1/2/5/10/20/50/100 optional
 Keyboard of XK3190-DS3  digital indicators
Numeric key: 0~9
Function key:24
  Clock: real clock
 Scoreboard interface
Signal output method: serial
Signal: 20mA current loop(constant current)
Baud rate: 600
Transmission distance:¡Ü2000 meters
 Printer interface
Pinter model LQ-300K,KX-P1131,KX-P1121
Serial communication interface
Standard interface: RS232C(RS422/RS485 optional)
Baud rate:600/1200/2400/4800/9600
Transmission distance: RS232C¡Ü30 meters:RS422/RS485¡Ü1200 meters
 Power supply of XK3190-DS3  digital indicators
AC 85~261V; 50~60Hz
DC power supply; outside rechargeable 12V battery
Features of XK3190-DS3  digital indicators：
AD/DC power supply, wide voltage input
Interface adopts new magnet-proof technology
Simple to debug
Standard Function:
Able to connect with digital load cell(e.g.HBM)
 Auto/manual angle correction
 With correction mode for static railway scale
 Digital load cell communication address modification function
 Single load cell and single angle data check function
 Call and display inner code to replace weight observing and analysis tolerance
 Able to set up zero-tracking range,zero(auto/manual) range
 With bi-divisions switch function
 Non-linearity correction and calibration tolerance correction
 Time power-off function
 Able to set up print function for fast filled weighing bill
 Weighing data save/check/delete/protection in case of power off
 Standard RS232C (RS422/RS485 optional) communication interface with selectable baud rate
 Standard scoreboard interface with 20mA current loop method
 Standard parallel print interface
 Able to save 1500 vehicle ID and corresponding tare weight,201 cargo ID and corresponding cargo name,1001 weighing records
 Able to print out various parameters of indicator
　
