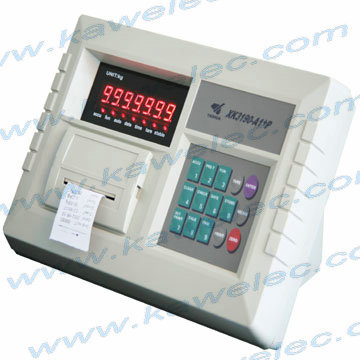

XK3190-A1+P weighing indicator,platform scale indicator
Category: Weighing Indicators >> Platform scale Indicator >>
built  in  printer,  applied  in  eletronic  floor  scale,  platform  scale,  equipped with  1~4  load  cells
Introduction of XK3190-A1+P   indicators
Weighing indicator XK3190-A1+P adpots A/D conversion technology, original from model XK3190-A1+, with built in printer
widely applied in eletronic floor scale, platform scale
applied in static weighing system equipped with 1~4 load cells
Features of XK3190-A1+P   indicators：
Zero range setup (auto/manual)
Date and time display(note: no power no save)
Save accumulation result manually
Weighing data save protection in case of power off
able to print weighing records auto/manual
Standard RS232C communication interface with selectable baud rate and communication method
Standard scoreboad interface serial sending signal by current loop, transmission distance: ≤50meters
With built-in 16 row micro printer
Technical Parameter of XK3190-A1+P   indicators：
A/D conversion method: Double integral
A/D conversion speed:≥5times/sec/
Input signal range: 1mV~24mV
Input sensitiity: ≥1μV
Load cell excitation: DC12V
Max. connection number of load cell: 4 at 350ohm
Load cell connection mode: 4 wire
Verified counts: 3000
Division: 1/2/3/10/20/50/100 optional
Display: 7bits LED, 7 status indicators
Display Range: -099990~99990(d＝10)
Clock: software clock, clock data lose on power off
Scoreboard interface(standard)
Serial sending sigal by current loop with baud rate 600,
Transmission distance:≤50meters
Communication interface(RS232C standard)
Serial communication interface, with selectable baud rate by continous sending method or on command method
Transmission distance: RS232C ≤30meters
Baud rate: 600/1200/2400/4800/9600
Transmission distance:¡Ü2000 meters
 Printer interface
Pinter model LQ-300K,KX-P1131,KX-P1121
Serial communication interface
Standard interface: RS232C(RS422/RS485 optional)
Baud rate:600/1200/2400/4800/9600
Transmission distance: RS232C¡Ü30 meters:RS422/RS485¡Ü1200 meters
 Power supply of XK3190-A1+P   indicators
AC 187~242V; 49~51Hz
