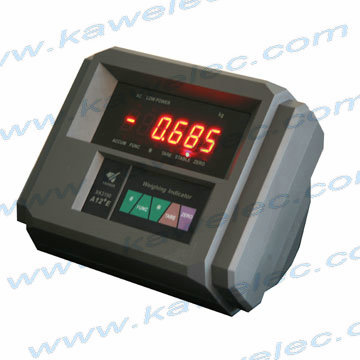

XK3190-A12+Ek3 weighing indicator,platform scale indicator
Category: Weighing Indicators >> Platform scale Indicator >>
Anti-vibration software, Applied in platform scale, floor scale, weighing system equipped with 1-4 load cell
Introduction of XK3190-A12+Ek3   weighing indicators
Anti-vibration software
Applied in platform scale, floor scale, weighing system equipped with 1-4 load cell
Fast speed, high precision  A/D conversion
Features of XK3190-A12+Ek3   weighing indicators：
A/D conversion with readability 1/30000
Use inner code to replace weight observing and analysis tolerance
Software to strength anti-vibration ability
Zero-tracking, Zero range setup (auto/manual)
Setup digital filter intensity, range and stable time
Counting function with unit data save protection in case of power off
Alarm for low battery and auto power off when low battery
Optional function:
1. KG/LB switch function
2. Animal scale function (A12, A12S only)
3. Two fixed- value outputs function with TTL output
Technical Parameter of XK3190-A12+Ek3   weighing indicators：
Model A12 / A12S A12E / A12ES
Input signal range -10mV~15mV
Input sensitivity  1V/e
Load cell Excitation Dc 5V:/150mA
Max. load cell connection 4 at 350 ohm
Display 6 bits LCD, 6 status indications 6 bits LED, 6 status indication
Optional interface RS232C serial communication
Power supply: AC220V, 50Hz; DC built-in 6V/5AH rechargeable battery
Transmission distance RS232C30 meters
