| Introduction of XK3190-A23P weighing indicator | |||||

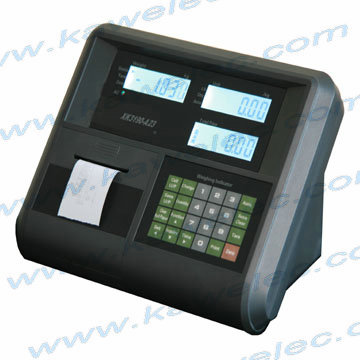

| Weighing indicator Xk3190-A23P is a price-computing indicator with three LCD display windows and built-in printer. It is able to apply in static weighing system equipped with 1-4 load cell such as electronic platform scale, electronic floor scale etc. | |||||
| Features of XK3190-A23P weighing indicator： | |||||
| Standard price-computing function | |||||
| Standard built-in stylus printer | |||||
| Able to save and call 100 unit prices | |||||
| Accumulation function, including accumulation display and accumulation clear, | |||||
| able to select to print details and accumulation note | |||||
| Able to inquiry the saved records by pressing the buttons | |||||
| Able to select items to print freely | |||||
| Simply counting function, and able to price-computing by the quantity | |||||
| Able to save, inquiry and print 1000 weighing records | |||||
| Standard RS232 interface, and optioanl communication format | |||||
| Optional high-low limits alarm function | |||||
| Optional KG/LB one-key switch function | |||||
| Technical Parameter of XK3190-A23P weighing indicator： | |||||
| Accuracy class: III | |||||
| Max verified counts: 3000 | |||||
| Input signal range: -16 ¨C 18mV | |||||
| AD conversion method: ¦²-¦¤ | |||||
| Load cell excitation: DC 5V | |||||
| Load cell connection mode: 4 wire | |||||
| Number of connection load cell: 1 ¨C 4 at 350¦¸ | |||||
| Power supply: AC220V, 50Hz; DC built-in 6V/5AH rechargeable battery | |||||
| Time for preheat: 15 minutes | |||||
| Scoreboard interface: | |||||
| Interface type: current loop | |||||
| Baud rate: 600 | |||||
| Transmission distance: <2000 meters | |||||
| Printer interface: | |||||
| Standard panel type mini printer | |||||
| Standard serial print interface, able to connect printer LQ-300K+, baud rate 9600 | |||||
| Serial communication interface: | |||||
| RS232Transmission type: RS232 | |||||
| Baud rate: 600/1200/2400/4800/9600(optional) |
