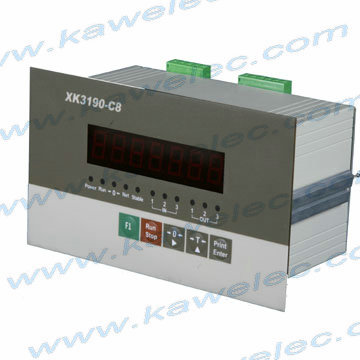

| Introduction of XK3190-C8+ digital weighing indicators | |||||
| Weighing indicator XK3190-C8 adopts 32-bits ARM processor of core Cortex M3 and high precision A/D conversion technology. It displays to the conversion of weight signals. The max conversion speed is over 200 times/sec. This indicator can be composed to catchweigher, Automatic gravimetric filling instruments, etc. It is used in various fast speed and high precision requirement weighing control. | |||||
| Features of XK3190-C8+ digital weighing indicators： | |||||
| 3 inputs, 3 outputs (3 output relays inside) controHigh precision A/D conversion with readability 1/30000 | |||||
| With 5 points nonlinearity amend | |||||
| If change the former indicator, no need to re-calibrate, only to input parameter of former indicator | |||||
| Real-time clock without effect on power | |||||
| Embodies with automatic gravimetric filling instruments, catchweigher, alarm for max and min limitation and peak value preserving functions | |||||
| Able to set fixed-value, pre-act value, max-min limitation, and delay time freely based on different applications | |||||
| Input & output can be expanded, each IO expanding box can be expanded to 8 on/off input and 8 on/off output. The max. connection number of IO expanding box is four. Total quantity of IO is 40 input and 40 output. | |||||
| 1-2 materials available for plus/minus scale; external, self-testing, and free max and min modes are available for catchweigher | |||||
| Standard RS-232/422/485 communication interface, baud rate and way of communication is optional | |||||
| Standard scoreboard interface serial sending signal by 20mA current loop (constant current) | |||||
| Precise simulate signal output with mode of 4-20mA/0-20mA/0-5v/0-10v optional, adjustable | |||||
| Accumulative weight and times is able to be stored, check , delete, and with date-protection when power cut off | |||||
| Able to connect with serial printer to print weighing record, accumulative amount or combined information, kg, t, g, lb, is an optional print unit | |||||
| Zero tracking, range for zero (automatic and manual) is free to be set | |||||
| Strong anti-jamming and reliability | |||||
| ESD protection performance: touch 6KV, air 8KV | |||||
| Able to recover from factory setting | |||||
| Technical Parameter of XK3190-C8+ digital weighing indicators: | |||||
| accuracy class: ( III ) | |||||
| AD conversion method: ¡Æ-¡÷ conversion technology | |||||
| AD conversion bit: 24bit | |||||
| Conversion speed: 80 times/s | |||||
| Input signal range: -19mV~+19mV | |||||
| Input sensitivity: ¡Ý1uV/e | |||||
| Nonlinearity:¡Ü0.01% F.S | |||||
| Full spam temperature:¡Ü8PPM/¡æ | |||||
| Load cell excitation: DC: 5V:350Ma | |||||
| Numbers of load cell connection: 1-8 load cells 350¦¸ | |||||
| Method of load cell connection: 6 wire, auto compensation for long distance. | |||||
| Display: 7-digit LED, height of bit 0.5 inch, 11 status lights. | |||||
| Division: 1/2/5/10/20/50/100 optional | |||||
| Clock: able to show real time and date | |||||
| Keyboard: 5 soft-touch buttons | |||||
| Scoreboard interface: adopts serial sending signal by 20mA current loop | |||||
| Communication interface: optional serial communication RS232C/RS422/RS485 and baud rate 600-9600 | |||||
| Print interface: share the serial interface, able to connect with serial printer. | |||||
| Relay output: capacity of AC: 220v, 0.5A | |||||
| External input: on/off touch point (on/off controls in effect), able to connect controller such as proximity switch | |||||
| Power supply: AC 110-230v, 50/60Hz 1ATemperature and humidity in application: 0-40¡æ; ¡Ü90%RH | |||||
| Temperature for store and transportation: -20~50¡æ | |||||
| Weight: about 700g |
